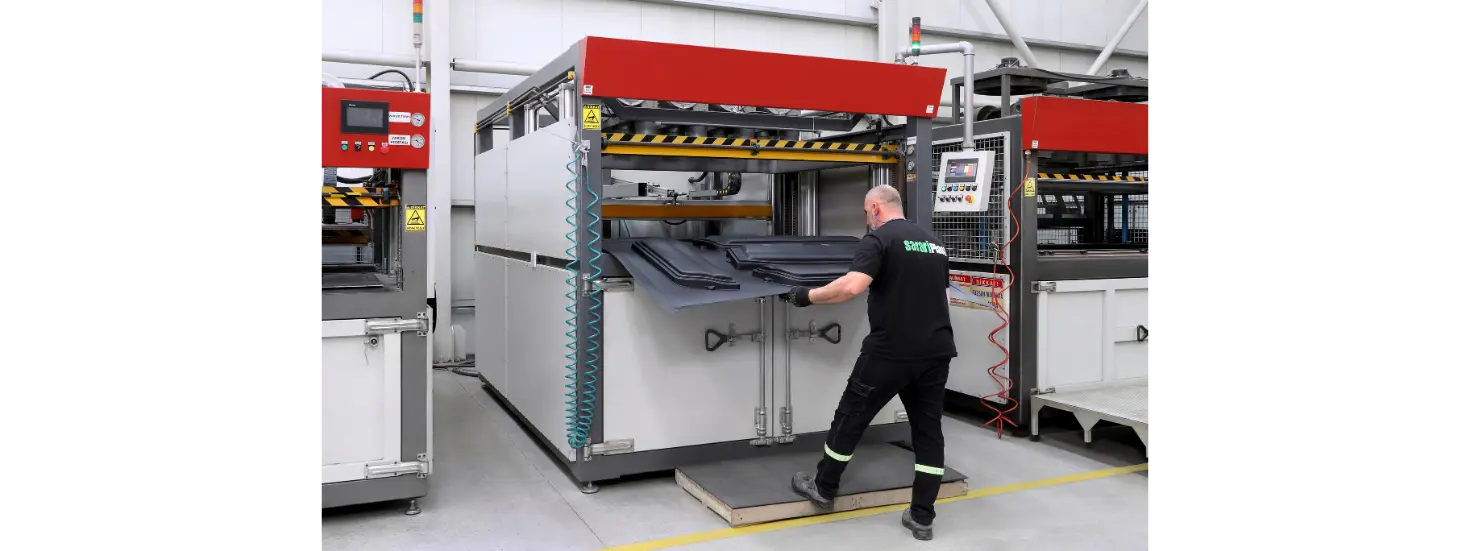

With our advanced thermoforming line, we transform the extruded sheets into high-precision, functional solutions tailored to our customers' needs. We offer forming services in different sizes and geometries for sectors like automotive, white goods, construction, and medical.
Technical Capabilities
- 5 state-of-the-art thermoforming stations
- Fully automated systems with zonal heating control
- Machine Dimensions:
- 1300 x 1100 mm – 1 unit
- 1630 x 1130 mm – 1 unit
- 1950 x 1400 mm – 1 unit
- 2400 x 1400 mm – 1 unit
- 3200 x 2200 mm – 1 unit
- Material Compatibility: ABS, ABS+PMMA, PS, PP, HDPE, and similar thermoplastics
- Applications: Interior trim parts, bathroom components, device panels, protective housings
- Mold Compatibility: High precision and repeatability with in-house mold production
Axis CNC Trimming – Final Processing
Thermoformed parts are precisely trimmed using our high-accuracy 5-axis CNC cutting machine. The process is performed on custom fixtures to ensure dimensional accuracy and superior edge quality.
CNC Technical Specifications:
Movement Area:
- X: 3370 mm
- Y: 1500 mm
- Z: 1200 mm
- B Axis: ±120°
- C Axis: ±360°
Speeds:
- X/Y/Z Linear Axes: 90 / 60 / 40 m/min
- C Axis Rotation Speed: 10,800 °/min
This capability ensures that not only shaping but also final dimensional finishing is completed entirely in-house at Safari Plast — with full control and repeatable quality.
